About us
- We are consultants and technologists specialized in wafer plating processes for MEMS and integrated circuit bumps and packaging applications.
- We perform rapid wafer process development work and small pilot runs.
- We are very experienced in thick copper, thick platinum, multi-layers (such as Cu/Sn/Au) and AuSn eutectic solder wafer plating applications.
What we do
- We plate your wafers
- We sell wafer plating tools
- We will teach you the process to bring “in-house”
- We can arrange photo masking and lithography work
Processes available:
Cu, Ni, Sn, Au, Pt, Pd, Rh, InAlloys:

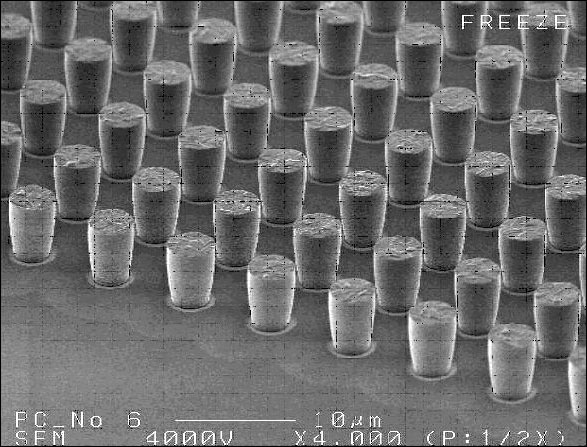

AuSn, SnAg, NiFe, NiCoContact:
Silicon Valley Wafer Plating807 Aldo Ave. Suite 107
Santa Clara, CA 95054
E-mail: info@waferplating.com
Dave Roberts (Principal)
(408) 469-3203
